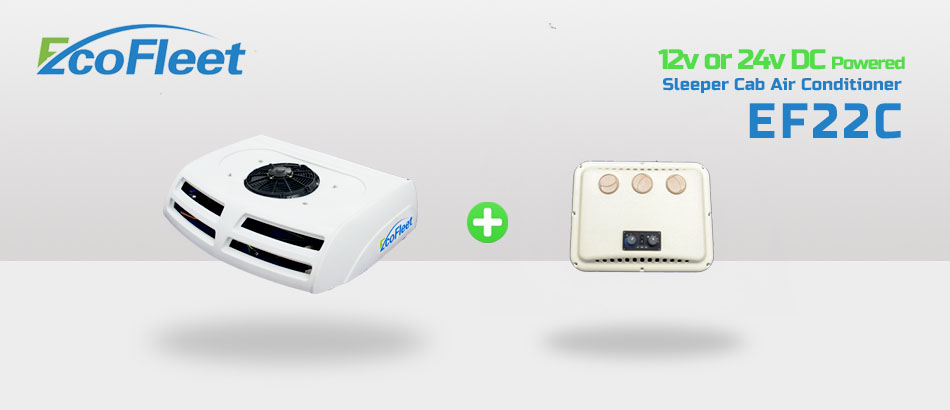

EF22C Rooftop Unitary A/C

  • EF22C Rooftop Unitary A/C Overview
  • Overview
  • Features
  • Specification
  • Online Inquiry

    EcoFleet EF22C Rooftop Unitary A/C is a high performance complete roof mount air conditioning system with tough external and internal construction, providing up to 7,500 Btu cooling capacity. The cooling power is regulated automatically with minimum consumption. These systems are exclusively designed for all types of mobile equipment.

    The EF22C rooftop unitary systems are the perfect solution for overnight rest in the truck cabin. and can also be used to maintain unloading operations, compulsory stoppage periods or when resting, sleeping, etc.


    Our EF22C rooftop unitary systems are robust and reliable and ideal for use on variety vehicles such as sleeper cabs, off-road vehicles, agricultural vehicles, ATV’s, ambulances, firetrucks, TBL vehicles, airport ground service vehicles, and others.

    1.Small size and flat structure, the ideal for mounting on the roof of the truck and can be well matched with the truck cab.

    2.Safety, EF22C Rooftop Unitary A/C operates with windows closed, minimized the risk of theft and supporting the driver’s safety during driver rests.

    3.Quietness and less vibrations, the highly efficient 12V or 24 V brushless direct current compressor has much higher degree of both safety and quietness compared with 115v or 230v compressors with inverter.

    4.Comfort, EF22C Rooftop Unitary A/C keeps the cabin climate healthy working as well as a dehumidifier.

    5.Zero Maintenance, the refined Ecofleet technology needs no maintenance. Workers without refilling of water.

    6.Wellness, powerful and silent, comfortable rest, reducing stress and tiredness and consequently risks of accidents on the road.

    7.Fuel saving, no engine required, thus reduced diesel consumption by as much as 3,000 gallons per year. As well as reduced engine wear and tear and other related maintenance costs.

    8.Truck main batteries protected, Ecofleet systems come with a battery protection switch that automatically shuts off the A/C at 21.5 voltage, ensuring that your drivers will always have plenty of power to turn over their truck’s engines.

    9.Environment friendly, 100% environmentally friendly, working engine-OFF by preventing atmospheric emissions of CO2.

    10.Easy installation, models are sold in ready-to-fit kits, easy and quick installation through the roof on most trucks, with installation and operating manuals clear and detailed.

    Model

    EF22C Rooftop Unitary

    Cooling capacity

    2.0--2.2 KW

    6824-7506 BTU/H

    1720-1892 Kcal/h

    Refrigerant gas

    R134A

    Voltage

    DC 12V/24V

    Compressor

    Brushless DC electrical compressor

    Condenser air

    ≧1800 m³/h

    Cooling air

    ≧700 m³/h

    Fan speed

    3 speed

    Max. current

    12V  62.1A




    24V  42.3A

    Working current

    12V  52A




    24V  35A

    Total Weight

    24.1 kg

    Ac size

    1050*783*194mm

    Package size

    1100*850*365mm

    Connecting pipes

    Rubber hose with crimp connectors And Cooper Pipe

    Shut-off voltage

    21.5V/10.5V

    Cabin

    4-5 seats cabin
